Flange Fixed Attenuator

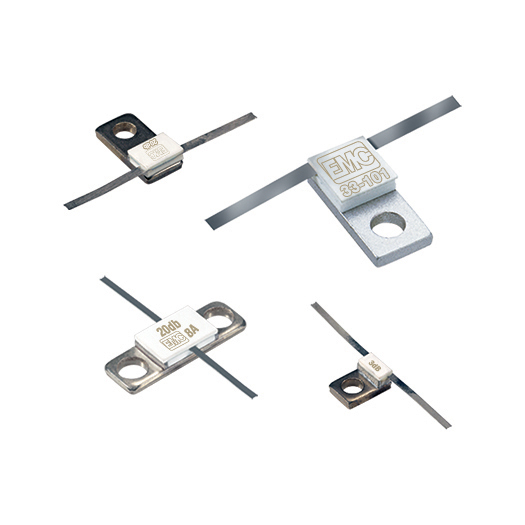

High power flange mount components offer high performance and the convenience of bolt-on installation. Flange attenuators have an attenuation range from 1 to 30 dB. Typical attenuation tolerance for values between 1-10 dB is +/- 0.5 dB and between 11-30 dB is +/- 1.0 dB (may vary for certain products, please refer to drawing). Maximum power rating of up to 400 watts can be achieved on a single device. All devices are made RoHS compliant and available in Aluminum Nitride (AlN) or BeO.
| Flange Attenuators | |||||||
| Part Number | Operating Frequency | VSWR | Max. Power | Length | Width | Substrate | Data Sheet |
| 33A1005xx.00F | DC - 4.0 GHz | 1.35 | 10 W | 5.08 mm | 7.62 mm | BeO | 33A1005F |
| 33A1001xx.00F | DC - 4.0 GHz | 1.50 | 20 W | 6.35 mm | 13.08 mm | BeO | 33A1001F |
| 33A1021xx.00F | DC - 2.5 GHz | 1.40 | 50 W | 9.53 mm | 24.77 mm | BeO | 33A1021F |
| 33A7023xx.00F | DC - 2.5 GHz | 1.20 | 100 W | 5.84 mm | 20.32 mm | AlN | 33A7023F |
| 33A7004xx.00F | DC - 3.0 GHz | 1.30 | 100 W | 6.48 mm | 20.83 mm | AlN | 33A7004F |
| 33P7024xx.00F | DC - 2.7 GHz | 1.30 | 100 W | 5.84 mm | 20.32 mm | AlN | 1015315 |
| 33A1006xx.00F | DC - 1.0 GHz | 1.50 | 150 W | 9.52 mm | 24.77 mm | BeO | 33A1006F |
| 33A1042xx.00F | DC - 1.0 GHz | 1.25 | 250 W | 12.70 mm | 31.75 mm | BeO | 33-1042-30 |
