L Series
  • Mixed signal, power, and coaxial modules
  • Provides up to 200 amp power
  • Cable to chassis and rack & panel
  • Plastic backshell with strain relief
  • Float mountable for blind mating

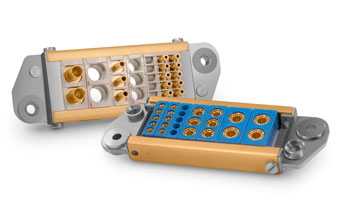

L Series Connectors are high density, modular, rack & panel connectors that include coax and high current contacts up to 200 amps, as well as the patented Hot Plug contact. The L series is used in high demanding of applications where the environment requires durability, ruggedization and extended operating life.

Utilizing the Hypertac® contact technology the interconnects offer high mating cycles (up to 100,000) combined with low insertion and extraction mating forces, as well as unsurpassable immunity to shock and vibration.

This modular building block system enables for custom connectors with large numbers of contacts to be configured in to a single frame. Therefore, the user is capable of selecting and customizing the connector to meet the exact requirements with off the shelf components and shortened lead times.

Additional Features of the L Series Power Connector include:

In Excess of 100,000 Mating Cycles

Low Insertion–  Extraction Forces

1/2 Turn Quick Disconnect

Keyable

Rugged and Durable

Full Range of Accessories

Similar Products

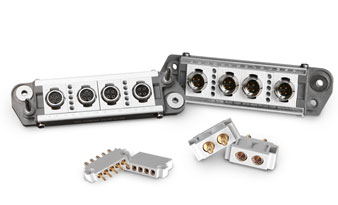

LHS

The LHS Rack & Panel Connector is made with the superior Hypertac® hyperboloid technology,...

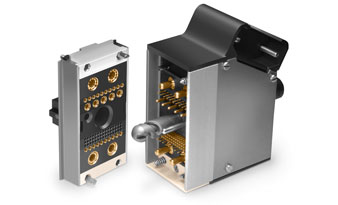

N Series
