- 3,4,5,7,9,12, & 25 contact positions
- 1 to 8 amps per contact
- Alignment provided by housing
- Crimp and solder cup contacts
- Recessed contact terminations
- Push button release for mating and unmating
You are here

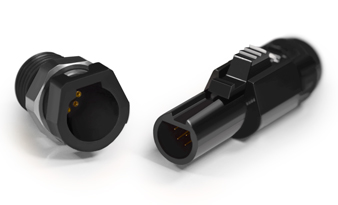

D Series
D series connectors are simple to use, foolproof, reliable. The D series makes connections effortless by having a simple push-button latch, available color coding and a "D" shaped flange which makes "up" and "down" obvious.
The D series is available in three sizes to accommodate a wide variety of applications. The mini D00 incorporates 5 Ø0.3mm Hypertac contacts in a connector which is almost 30% smaller than the D01. The D01 plug has up to nine Hypertac contacts in less than 1/2" diameter, and the slightly larger D02 offers even more options, from three power to 25 signal contacts, or a mixture of power or coax and signal contacts.
Smiths Interconnect can customize the D series for specific applications.
Each connector half accepts pins or sockets
Quick disconnect push button release
Alignment provided by housing
Crimp and solder cup contacts
Recessed contact terminations (eliminates need for shrink tubing)
